Mapping with R

This page provides an introduction to mapping in R. It provides a very short overview of geospatial concepts and then introduces working with vector and raster data in R by creating a map of Virginia.

Geospatial concepts

There are two main concepts in dealing with geospatial data:

  1. The type of data and how it is represented: vector or raster.
  2. How the data relates to the surface of the Earth: Coordinate reference system. Without a coordinate reference system (CRS), either implicit or explicit, the data is not spatial.

Data types

Vector data

  • Vector data are based on points, lines, and polygons within a coordinate system.
  • Vector data are similar to the sorts of data we have been working with in creating scatter plots or line plots. It is represented in a data frame and has x and y coordinates.
  • If you are working with points, lines, and polygons (land, oceans, lakes, political borders), you are dealing with vector data.

Raster data

  • Raster data is based on a grid of cells in which each cell has one value.
  • Raster data is not represented by a data frame but by a matrix: a vector with two dimensions. It does not work through x/y coordinates but from a point of origin, the extent of each cell, and the number of cells.
  • Raster data can either be continuous (elevation) or discrete/categorical (soil type).
  • Digital photography is based on raster data. If you zoom into raster data it will become pixelated.

Coordinate Reference Systems

  • Vector and raster data is made into spatial data by possessing a Coordinate Reference System (CRS), which translates coordinates (vector) or a grid of cells (raster) to space on the surface of the earth.
  • There are two types of coordinate reference systems: Geographic and projected.
    • Geographic coordinate reference systems are measured in degrees of latitude and longitude, which are angles from the earth’s center to its surface.
    • Projected coordinate reference systems transform the angular measurements on a spherical earth to a flat surface using linear units such as meters or feet.
    • Check out the Map Projection Explorer to get an idea of how different projections look and what they may be useful for.
  • Components of coordinate reference systems:
    • Datum: A model of the shape of the Earth. Common global datums are WGS84 and NAD83.
    • Projection: Mathematical projection of 3D model of the Earth to 2D. Projections are often named based on a property they preserve:
      • Equal-area preserves area
      • Azimuthal preserve direction
      • Equidistant preserve distance
      • Conformal preserve local shape

References

Packages for spatial data in R

See the CRAN spatial analysis task view for a complete guide to packages for spatial data in R.

Spatial packages

Spatial data packages

Visualization of spatial data

Vector data in R

The basis for working with vector spatial data in R is provide by the sf: Simple features for R package. An sf object is a data frame that contains a special geometry column that brings together the coordinates and spatial type (point, line, polygon, etc.) and spatial attributes of the coordinate reference system (CRS) of the data. See Figure 1.

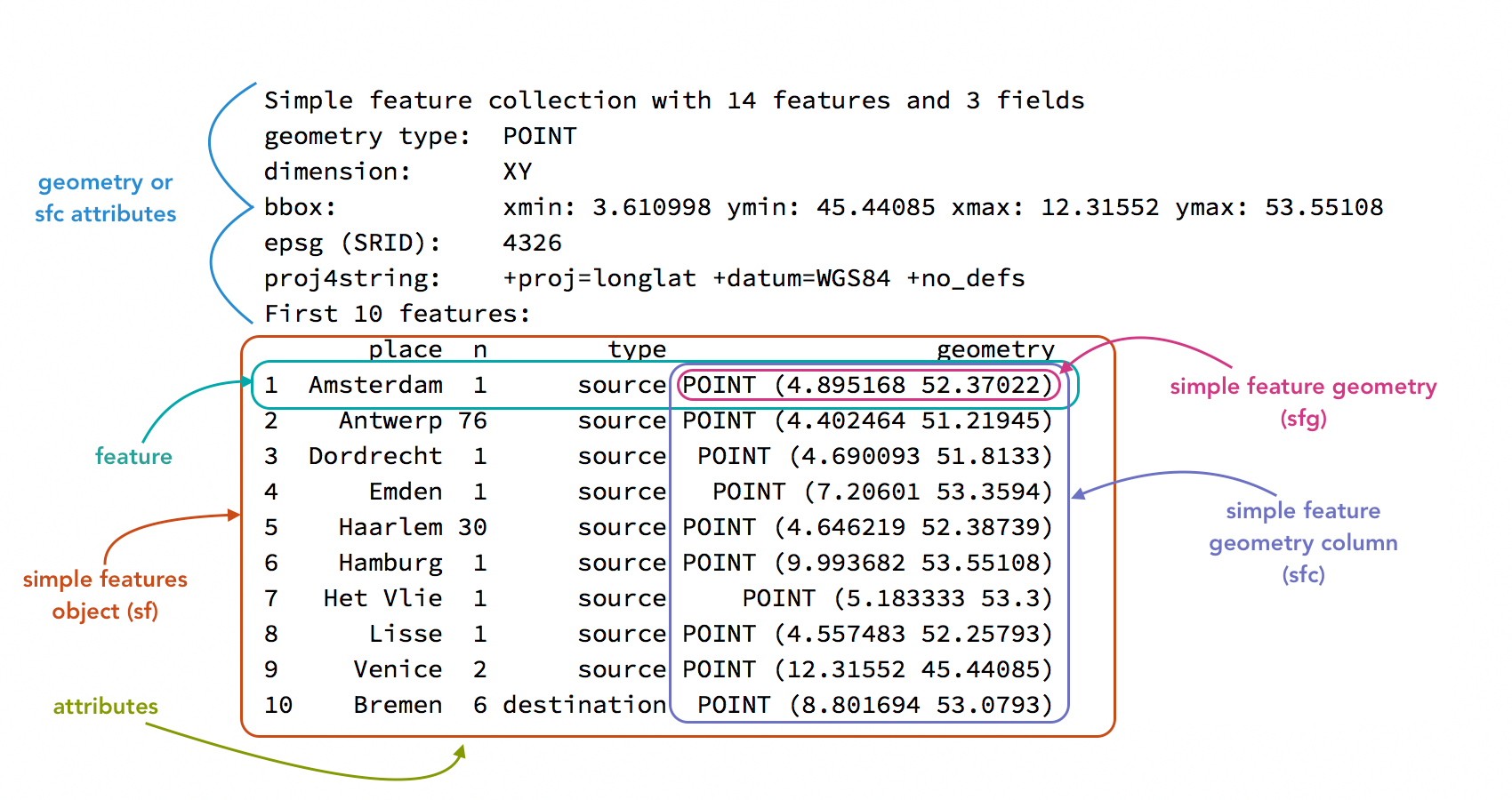

A screenshot of the printout for an sf object in R showing the geospatial attributes at the top followed by a data frame. There are boxes and labels pointing to the different aspects of an sf object.
Figure 1: Overview of an sf object in R.

Aside from the special geometry column, sf objects behave very similar to data frames and, therefore, fit well within the th tidyverse set of packages. This means you can usually make use of the workflows discussed in Wrangling data in the tidyverse as is.

Vector data will generally consist of points, lines, or polygons with attributes you want to represent graphically and, optionally, a separate base map such as Figure 2.

A map of Virginia counties with black points at Blacksburg and Charlottesville.
Figure 2

Let’s go through the process of creating this map. For this map we need to geocode the locations, get a base map of the counties of Virginia, project the points and base map to the coordinate reference system for the state, and then make the map. We will do this using the following packages:

Do note that there are a variety of ways to achieve the same result.

library(sf)
library(tidygeocoder)
library(USAboundaries)
library(tidyverse)

1. Geocode locations

One of the most straightforward but also flexible packages for geocoding locations in R is tidygeocoder. You can geocode a character vector of locations with geo() or a data frame of locations with geocode(). tidygeocoder provides a number of services for doing the geocoding, defaulting to OpenStreetMap data.

locations <- geo(c("Blacksburg", "Charlottesville"))
locations
# A tibble: 2 × 3
  address           lat  long
  <chr>           <dbl> <dbl>
1 Blacksburg       37.2 -80.4
2 Charlottesville  38.0 -78.5

2. Convert locations to sf object

locations has geographic data, but it is not technically geospatial. The addresses have latitude and longitude values, but the coordinate reference system used is implicit. When data is geocoded it is almost always returned using the web Mercator projection known as EPSG 4326. The EPSG standard is a convenient method for defining a CRS. You can look up EPSG codes using Spatial Reference. We can convert the data frame to a spatial data frame—an sf object—with the st_as_sf() function.

locations_sf <- st_as_sf(locations, coords = c("long", "lat"), crs = 4326)
locations_sf
Simple feature collection with 2 features and 1 field
Geometry type: POINT
Dimension:     XY
Bounding box:  xmin: -80.41368 ymin: 37.22966 xmax: -78.47668 ymax: 38.02931
Geodetic CRS:  WGS 84
# A tibble: 2 × 2
  address                     geometry
* <chr>                    <POINT [°]>
1 Blacksburg      (-80.41368 37.22966)
2 Charlottesville (-78.47668 38.02931)

Notice the differences between locations and locations_sf. The latter has combined the long and lat columns into a single geometry column, while we also get attributes about the object’s CRS as shown above in Figure 1.

3. Get a base map

There are many packages that provide vector mapping data in R. rnaturalearth is a great starting point. It contains worldwide data for administrative boundaries and natural features such as lakes, rivers, and oceans. tigris provides access to census bureau geographic data. In this example we will use USAboundaries, which provides contemporary and historical boundaries in the United states. Both rnaturalearth and USAboundaries provide most of the data through secondary packages. If these packages are needed, you will be prompted to install them.

WarningInstalling data packages on Windows

If the installation fails on Windows with an error that the package cannot be built, there are two options to solve the issue.

  1. Download and install RTools, which makes it possible to build packages.
  2. Install the package from a different repository:
install.packages("USAboundariesData", repos = c("https://ropensci.r-universe.dev"))

The process is the same for rnaturalearth:

install.packages("rnaturalearth")
install.packages("rnaturalearthdata", repos = c("https://ropensci.r-universe.dev"))
install.packages("rnaturalearthhires", repos = c("https://ropensci.r-universe.dev"))

Both rnaturalearth and USAboundaries return sf objects with a CRS of EPSG:4326. Here, we want county data for a single state.

virginia <- us_counties(states = "Virginia")

4. Reproject the data

Now we have the data, but we might want to change our data from using the web Mercator projection to a CRS that more accurately reflects the local area. USAboundaries provides both a data frame of the State Plane Coordinate System projections as EPSG codes and a function to quickly return the code for a state. We can then use st_transform() to reproject the data.

# Find EPSG code for Virginia
state_plane(state = "VA")
[1] 32146
# Project
locs_proj <- st_transform(locs, "EPSG:32146")
virginia_proj <- st_transform(virginia, "EPSG:32146")

5. Map the data

ggplot2 has the ability to plot sf through geom_sf(). This is a special geom in that it can plot different geometric objects—points, lines, polygons—based on the geometric type of the sf object. Note that in creating maps with ggplot2 you will often being providing multiple data objects to separate geom layers. When doing this, the data argument should be written out, thus geom_sf(data = virginia_proj).

ggplot() +
  geom_sf(data = virginia_proj) +
  geom_sf(data = locs_proj) +
  labs(title = "Map of Virginia counties",
       subtitle = "With points showing the locations of Blacksburg and Charlottesville") +
  theme_minimal()

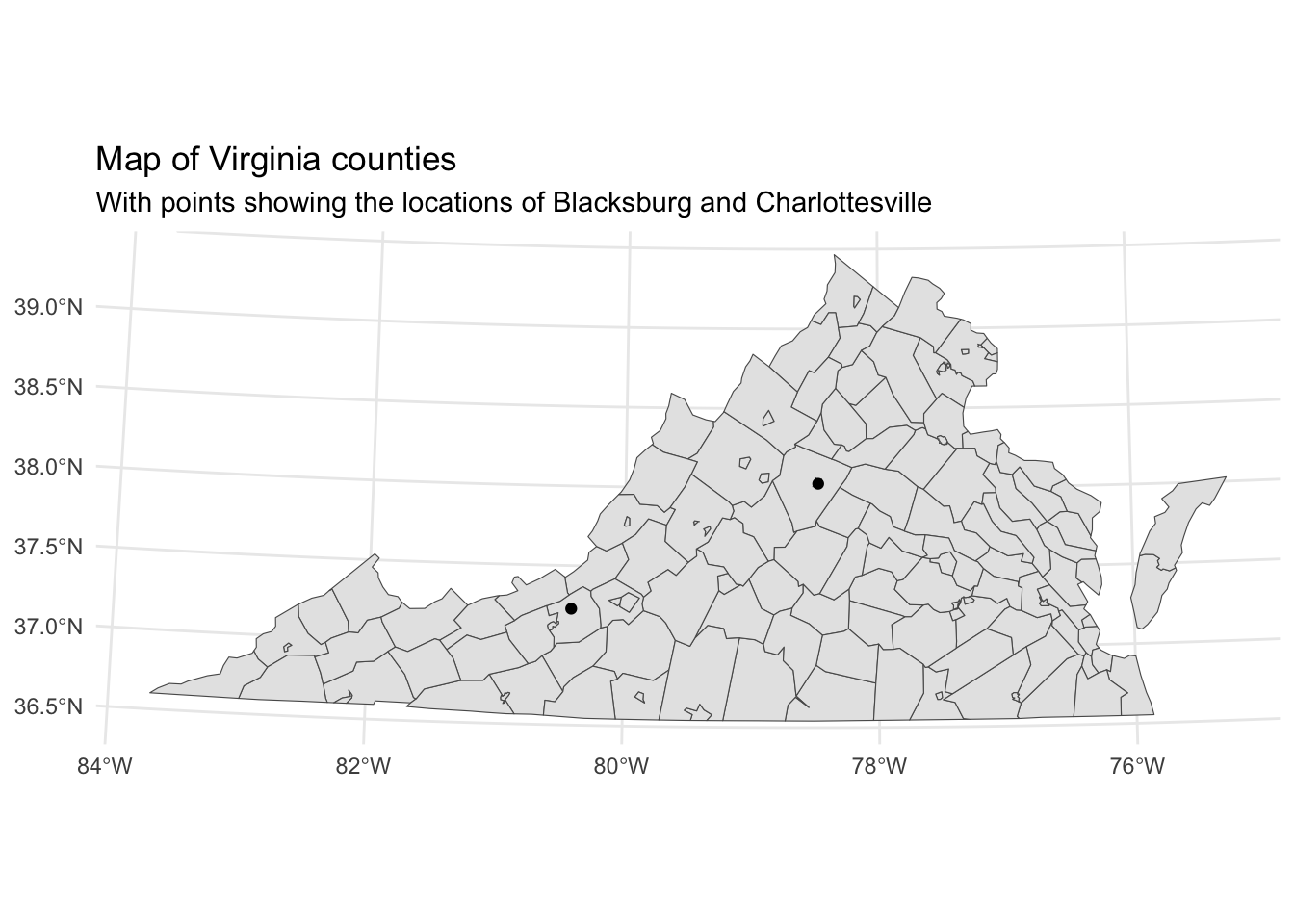

A map of Virginia counties with black points at Blacksburg and Charlottesville.
Figure 3

Create an interactive plot with leaflet

leaflet for R provides an interface to the widely used leaflet JavaScript library. Let’s take our map and create a simple interactive map.

library(leaflet)

leaflet() |>
  addTiles() |>
  addPolygons(data = virginia,
              fillOpacity = 0,
              color = "#000",
              weight = 2) |>
  addMarkers(data = locs, label = ~address)
Figure 4

You can make quite complex maps using leaflet, and, as you can see here, they can be placed right into Quarto documents.

Raster data in R

Historical data is generally vector data, but there may be times when raster data can either supplement a map with vector data or be a meaningful way to present historically relevant data in itself. One particularly relevant form of raster data elevation. Let’s get some elevation data using the following packages:

library(terra)
library(tidyterra)
library(elevatr)

1. Get elevation raster

The elevatr package provides a way to download elevation data, using a spatial data object to define the boundaries of the raster to be returned. Currently, get_elev_raster() returns a raster object, which we can update to a terra object with the rast() function. The z level provides a zoom level between 1 and 14 with 1 as the most zoomed out and 14 as the highest resolution. The larger geographic area you want the lower zoom level you will need. Setting clip = locations returns a raster only inside the boundaries of the virginia sf object.

va_elev <- get_elev_raster(virginia, z = 7, clip = "locations")
va_elev <- rast(va_elev)
va_elev
class       : SpatRaster
size        : 573, 1650, 1  (nrow, ncol, nlyr)
resolution  : 0.005109401, 0.005109401  (x, y)
extent      : -83.67501, -75.2445, 36.53983, 39.46752  (xmin, xmax, ymin, ymax)
coord. ref. : +proj=longlat +datum=WGS84 +no_defs
source(s)   : memory
name        : file318b60234ce3
min value   :             -315
max value   :             1682

A terra object (specifically this is a SpatRaster) is similar to an sf object in that it is normal R data object with spatial attributes. However, instead of holding data in a data frame, a terra object uses a matrix of values. It will rarely be useful to see the values themselves, but the print method for SpatRaster provides an overview of the dimensions of the raster, the number of layers (nlyr), the name of the layer(s), and the minimum and maximum values.

2. Clean the raster data

The tidyterra makes it possible to manipulate terra objects using dplyr verbs, provides special geoms for plotting terra objects in ggplot2, and color palettes designed for geographic data. You might notice that the minimum value is less than 0, which is probably an error. We can change anything less than 0 to -1 with mutate(), treating the name of the layer as the column name. First, we might want to rename the layer name to a more descriptive name than the file number.

names(va_elev)
[1] "file318b60234ce3"
# Rename in place
names(va_elev) <- "altitude"

# Change values less than 0
va_elev <- va_elev |>
  mutate(altitude = if_else(condition = altitude < 0,
                            true = -1,
                            false = altitude))
va_elev
class       : SpatRaster
size        : 573, 1650, 1  (nrow, ncol, nlyr)
resolution  : 0.005109401, 0.005109401  (x, y)
extent      : -83.67501, -75.2445, 36.53983, 39.46752  (xmin, xmax, ymin, ymax)
coord. ref. : +proj=longlat +datum=WGS84 +no_defs
source(s)   : memory
name        : altitude
min value   :       -1
max value   :     1682

3. Reproject the data

Next, we need to project the terra object into the CRS for virginia. In terra you do this with project().

# project the data
va_elev <- project(va_elev, "EPSG:32146")
va_elev
class       : SpatRaster
size        : 729, 1632, 1  (nrow, ncol, nlyr)
resolution  : 462.7398, 462.7398  (x, y)
extent      : 3036571, 3791763, 1875117, 2212454  (xmin, xmax, ymin, ymax)
coord. ref. : NAD83 / Virginia North (EPSG:32146)
source(s)   : memory
name        : altitude
min value   :    -1.00
max value   :  1666.06

4. Map the data

Let’s take a look at what we have. We can plot with ggplot2 using geom_spatraster() from tidyterra and play around with different scale_fill_*() functions provided by tidyterra. Check out the color palette options at the tidyterra website. This example uses wikipedia colors. Within geom_spatraster() setting the fill aesthetic will be done automatically, so it is not strictly necessary in this case where there is only the one layer.

ggplot() +
  geom_spatraster(data = va_elev, aes(fill = altitude)) +
  scale_fill_wiki_c() +
  theme_minimal()

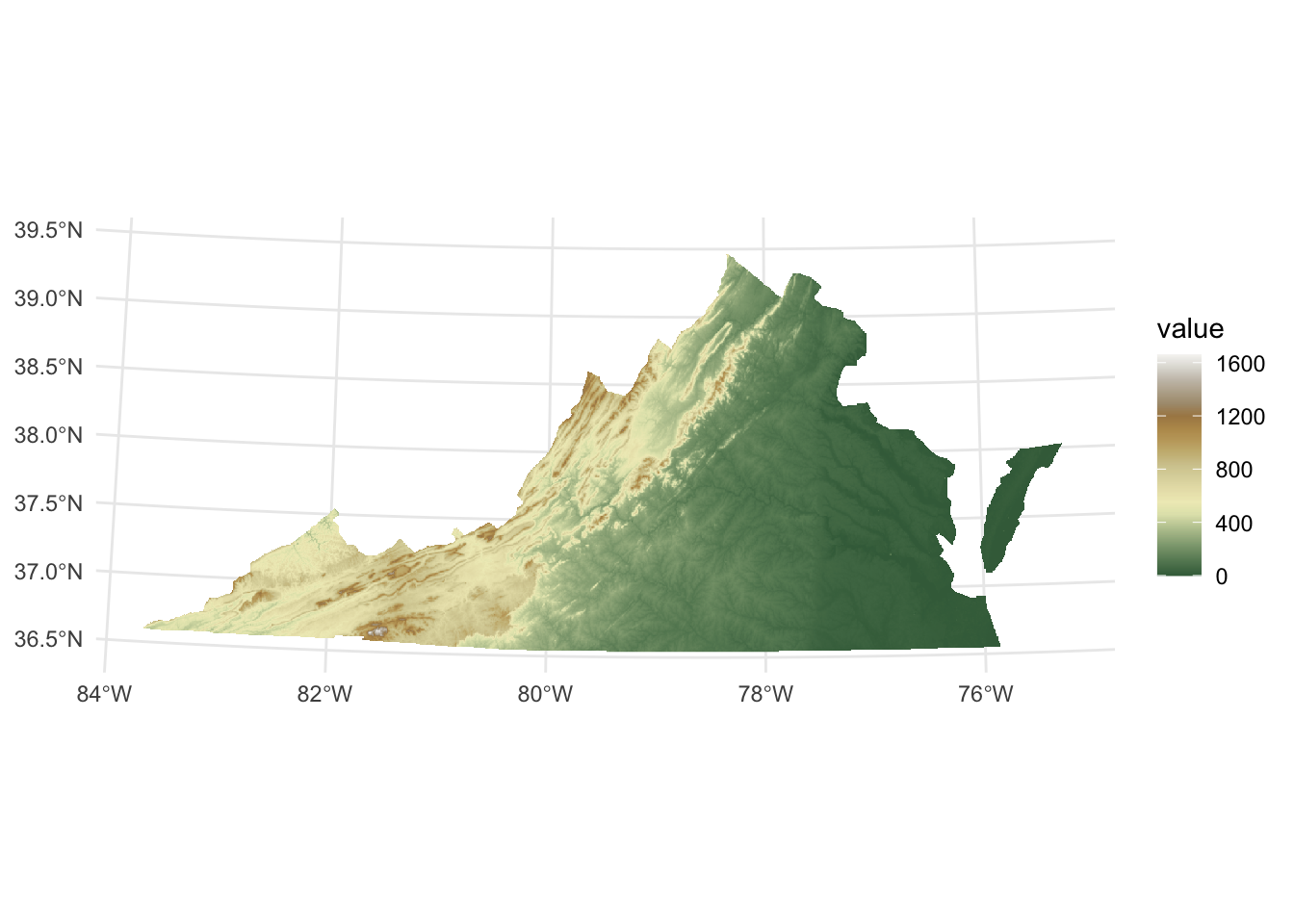

A map of the elevation of Virginia.
Figure 5

Put it all together

Finally, let’s put it all together, plotting the raster and vector data together. Note that layers are plotted in order, so we want to plot the raster first and then the vector data. We also need to make the fill of the counties base map (virginia_proj) to transparent using NA.

ggplot() +
  geom_spatraster(data = va_elev) +
  geom_sf(data = virginia_proj, fill = NA) +
  geom_sf(data = locs_proj) +
  scale_fill_wiki_c() +
  labs(title = "Map of Virginia counties",
       subtitle = "With points showing the locations of Blacksburg and Charlottesville",
       fill = "Altitude") +
  theme_minimal()

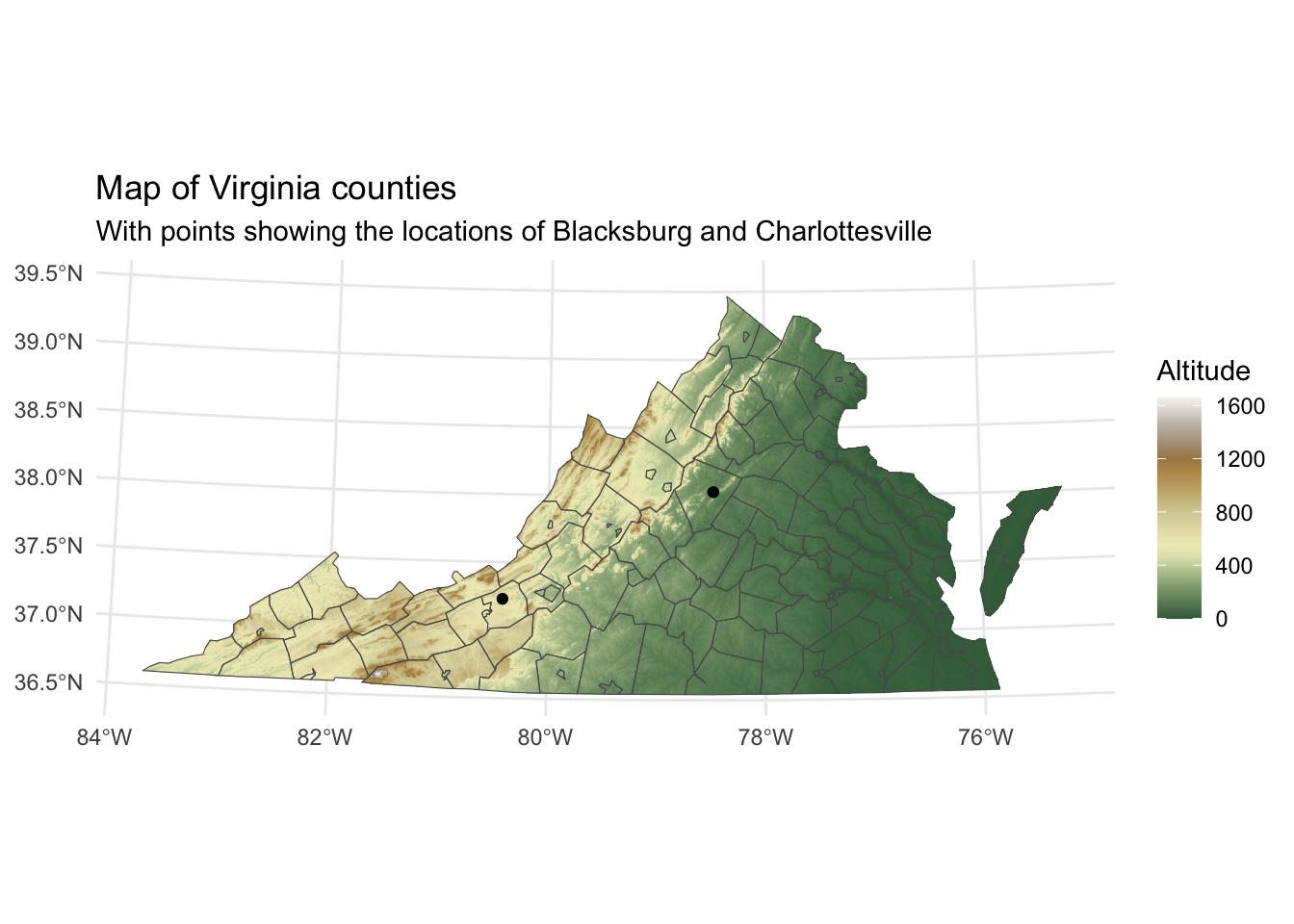

A map of Virginia counties with black points at Blacksburg and Charlottesville.
Figure 6
